Open Mesh / CloudTrax Routers

To configure the system it is necessary to access the control panel CloudTrax (SSID#1).
There are two versions of the control panel: version 4 can handle the latest devices with firmware 5.x and the older version for devices with old firmware.


Cloud Trax 4 configuration (firmware 5.xx)


In Captive Portal section set following entries:


- Splash page : Active
- Splash page type : Hosted remotely
- Splash page URL : https://cp.mywifiservice.com/login
- Splash page secret : mywifisecret
- Splash page authentication type : RADIUS
- Server address 1 : radius1.mywifiservice.com
- Server secret : mywifisecret
- NAS ID: the location's ID (NAS ID) in the location configuration page of My Wi-Fi Service

In the "Advanced" page set:

- Custom.sh Server: http://app.mywifiservice.com/script/?XXXX/v4/
where XXXX is the NASID previously seen.






Cloud Trax 3 configuration (firmware 4.xx)

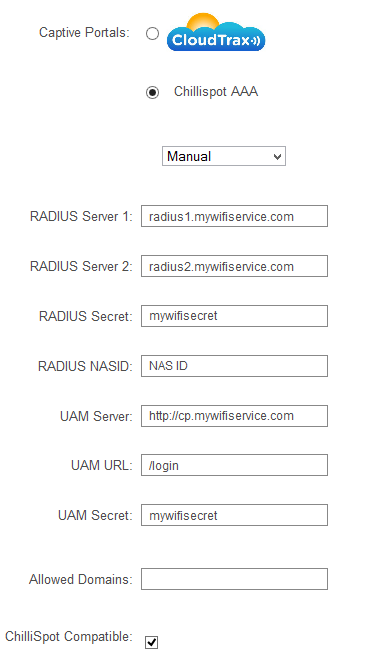

Set following items Chillispot AAA, Manual, ChilliSpot Compatible and set following parameters:


- RADIUS Server 1: radius1.mywifiservice.com

- RADIUS Secret: mywifisecret

- RADIUS NASID: the locations's ID (NAS ID) in the location configuration page of My Wi-Fi Service

- UAM Server: https://cp.mywifiservice.com

- UAM URL: /login

- UAM Secret: mywifisecret




In the "Advanced" page set:

- Custom.sh Server: http://app.mywifiservice.com/script/?XXXX/ where XXXX is the NASID

- Enable custom.sh: Yes
